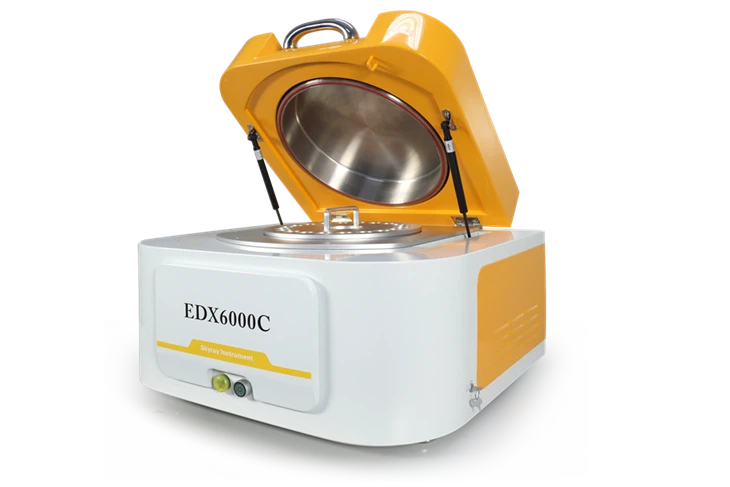

Building upon the cumulative performance of over tens of thousands of energy-dispersive analysis devices, Skyray Instrument has dedicated a decade to create a new generation analyzer, the EDX6000C, which integrates various testing needs into one instrument.
This instrument features a large-area graphene ultra-thin window electrically cooled semiconductor SDD detector, an ultra-low-loss test optical path, an ultra-thin beryllium window Oxford tube excitation light source, Siemens PLC control for single-sample and multi-sample chamber systems (with options for 9, 12, and 20 sample chambers), a combined vacuum and helium system, a sample spinning system, and a three-fold security protection system for the instrument (detector anti-puncture function, high-voltage key protection, and sample cover self-locking function). The instrument seamlessly combines single-sample and multi-sample chamber injection modes. It is complemented by Skyray’s latest research achievement, the XRF composition analysis software version 4.0 and RoHS 5.0 full intelligent version software. It enables one-click testing for both liquid and solid samples. Its powerful intelligent algorithms can automatically identify sample materials and select the appropriate curve, achieving true intelligent automatic detection for multi-sample positions.
The instrument offers low operating costs, improved maintenance performance, and enhanced convenience. It can be applied to a wide range of fields, from product management subject to regulations such as RoHS/ELV directives and toy directives, to everyday research in general material analysis. This includes element analysis in various industries, ranging from electronic and electrical materials to metal composition analysis, automotive mechanical testing, petrochemical element analysis, pharmaceutical and food quality control, geological mineral element analysis, and analysis in industries such as cement, refractory materials, and glass.
